Product weight: 5 kg/10 kg/25 kg/100 kg
Product particle size: 15-45 μm
Product description:GH3230 Superalloy powder, primarily composed of nickel, chromium, and cobalt, exhibits excellent high-temperature strength, oxidation resistance, and corrosion resistance. It is widely used in the aviation, aerospace, and energy sectors, and is particularly well-suited for manufacturing high-temperature components such as turbine blades and combustion chambers, maintaining stable mechanical properties even in high-temperature environments.
Superalloy

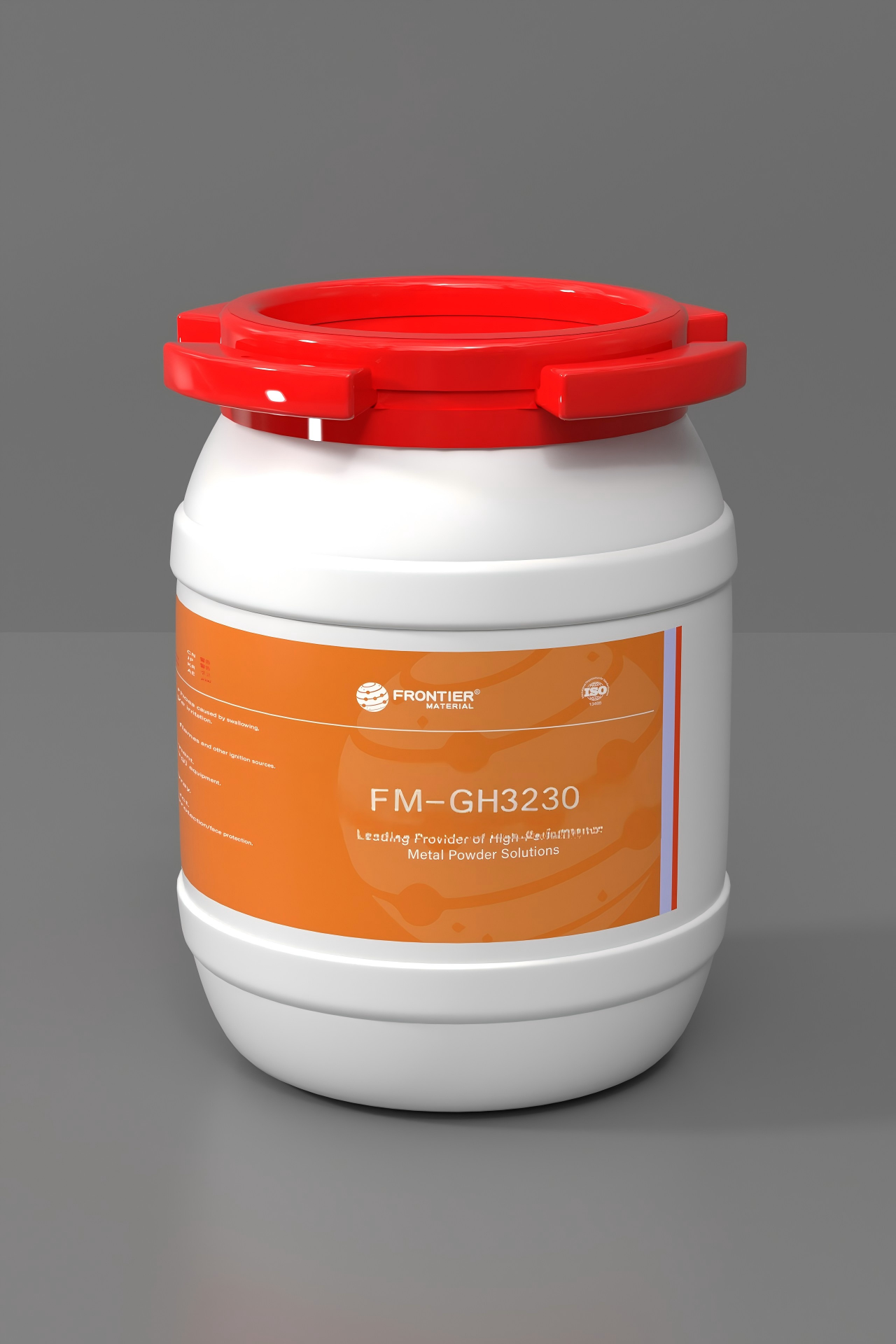

FM-GH3230 | 15-45 µm
| Chemical composition | |
| Element | wt% |
| Ni | 50-60 |
| Cr | 20-24 |
| W | 14-16 |
| Mo | 1-3 |
| Co | 0-5 |
| Powder proporties | ||
| Particle range | 15-45 μm | GB/T 19077 |
| Apparent density | ≥4.2 g/cm3 | GB/T 1479.1 |
| Tap density | ≥4.9 g/cm3 | GB/T 5162 |
| Hall speed | ≤25 s/50g | GB/T 1482 |
| Typical mechanical proporties as pringted | |
| Tensile strength | 930±50 MPa |
| Yield strength | 930±50 MPa |
| Ductility | ≥25% |
Standard parking:
5kg/10kg/25kg/100kg
| Application | Aerospace, Automotive, Energy |
|---|---|
| Technology | DED, EBM, LPBF |
