Product weight: 25 kg/50 kg/100 kg
Product particle size: 15-45 µm
Text description:Copper alloy CuSn12Ni2（ASTM:C91700/EN:CC484K）powder is mainly composed of copper, tin and nickel, which has good wear resistance, corrosion resistance and high strength. It is widely used in the manufacture of high-load bearings, gears, valves, and other parts, especially suitable for industrial environments that require wear and corrosion resistance.

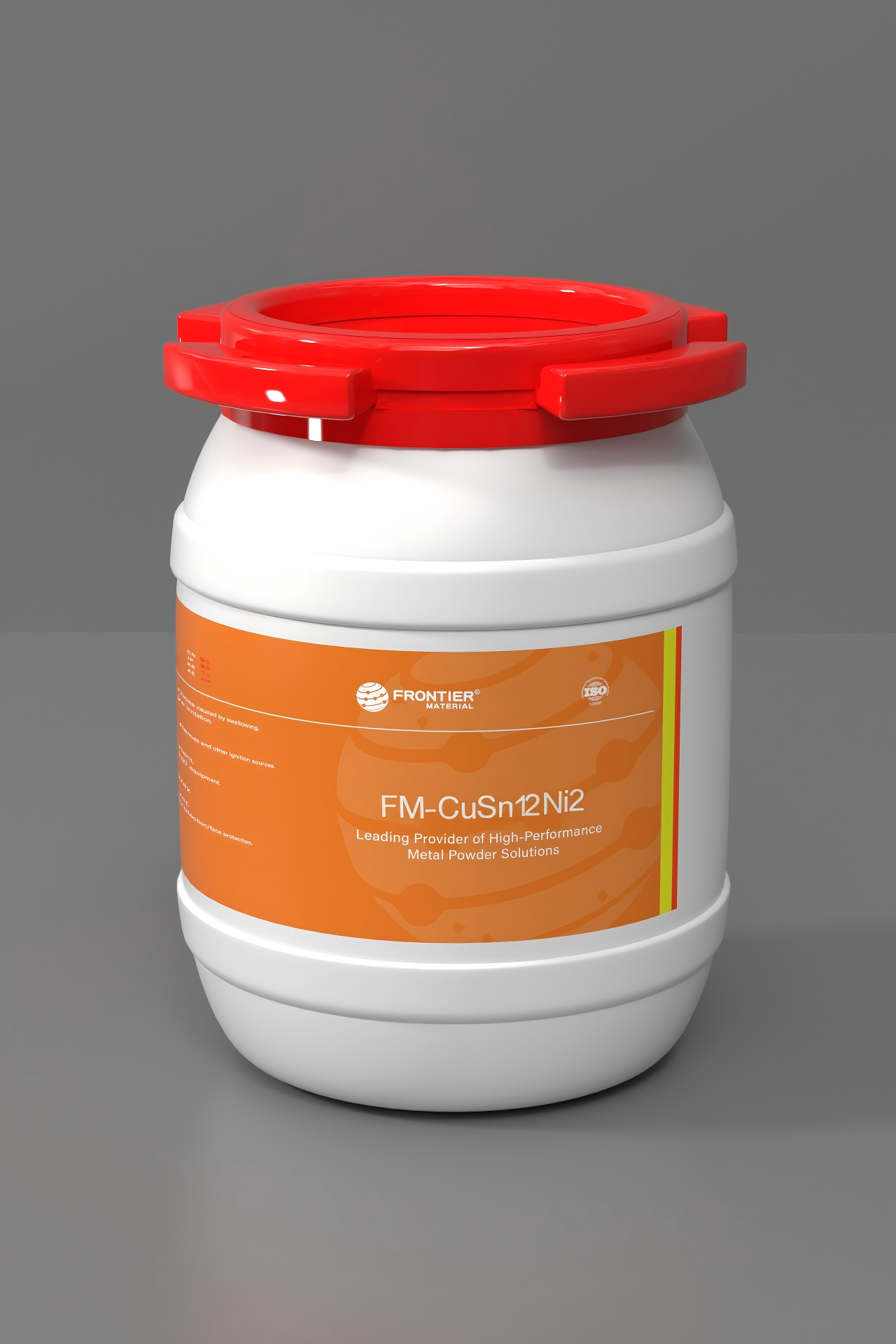

FM-CuSn12Ni2 | 15-45 µm
| Chemical composition | |
| Element | wt% |
| Cu | ≥85 |
| Sn | 12 |
| Ni | ≤2 |
| Pb | <1 |
| O | ≤0.1 |
| Powder properties | ||
| Particle range | 15-45 μm | GB/T 19077 |
| Apparent density | ≥4.5 g/cm3 | GB/T 1479.1 |
| Tap density | ≥5.2 g/cm3 | GB/T 5162 |
| Hall speed | ≤22 s/50g | GB/T 1482 |
| Typical mechanical properties as printed | |
| Tensile strength | 350±30 MPa |
| Yield strength | 200±30 MPa |
| Ductility | ≥15% |
Standard parking:
5 Kg/10 Kg/25 Kg/100 Kg
| Application | Aerospace, Automotive, Consumer Electronics, Energy, Mold |
|---|---|
| Technology | LPBF |
