Product weight: 25 kg/50 kg/100 kg
Product particle size: 15-45 µm
Text description:AlMgSc (ASTM:AA5028/EN:AW-5028) is an aluminium alloy primarily composed of aluminium, magnesium, and scandium. The addition of scandium enhances the strength and corrosion resistance of the alloy, making it widely used in the aerospace and automotive industries, particularly suited for high-strength, lightweight structural components.

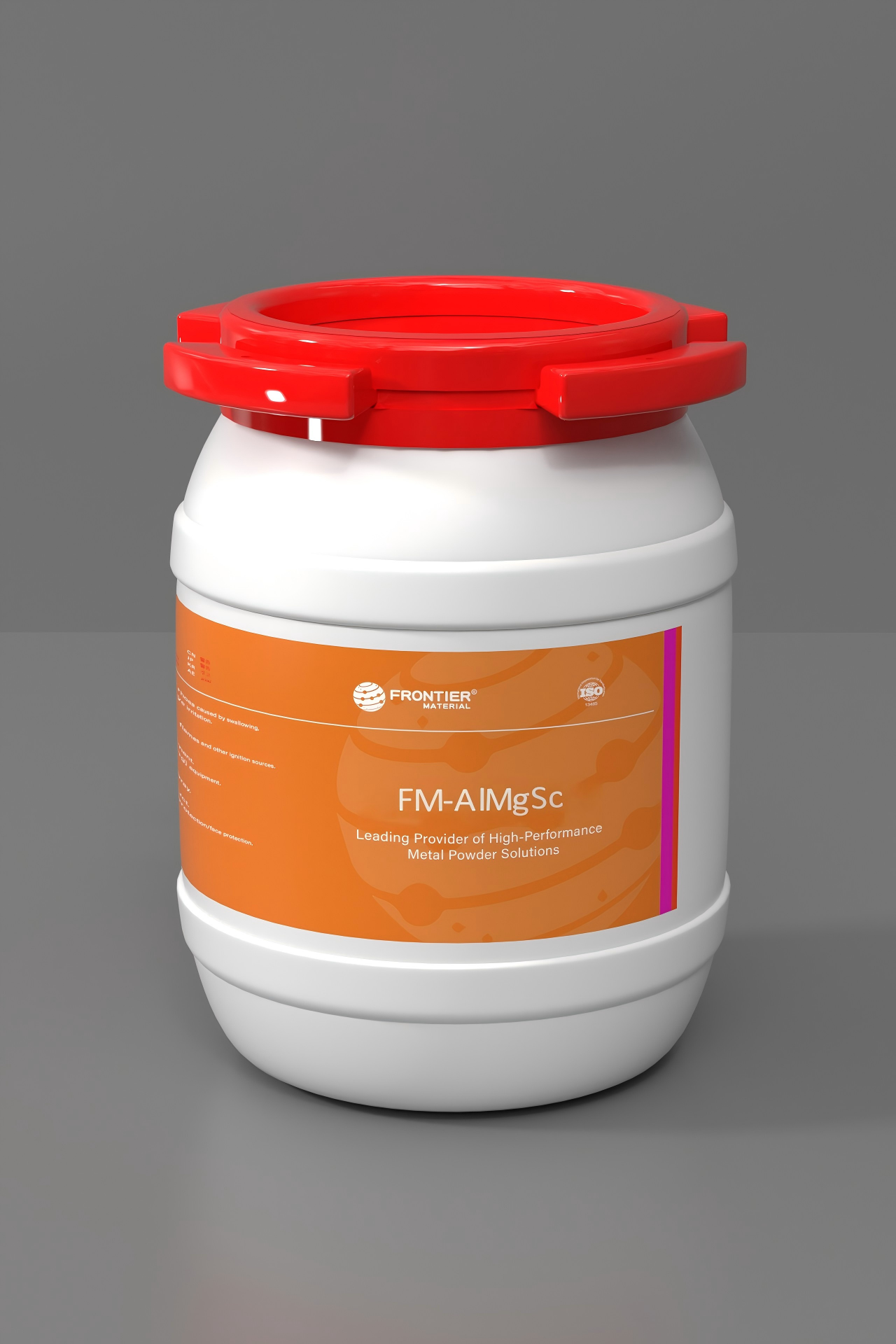

FM-AlMgSc | 15-45 µm
| Chemical composition | |
| Element | wt% |
| Al | ≥90 |
| Mg | 3-6 |
| Sc | 0.1-0.5 |
| Zr | 0.1-0.3 |
| Mn | ≤0.5 |
| Si | ≤0.2 |
| Fe | ≤0.2 |
| O | ≤0.05 |
| Powder properties | ||
| Particle range | 15-45 μm | GB/T 19077 |
| Apparent density | ≥1.3 g/cm3 | GB/T 1479.1 |
| Tap density | ≥1.6 g/cm3 | GB/T 5162 |
| Hall speed | ≤90 s/50g | GB/T 1482 |
| Typical mechanical properties as printed | |
| Tensile strength | 540±20 MPa |
| Yield strength | 510±20 MPa |
| Ductility | ≥12% |
Standard parking:
5 Kg/10 Kg/25 Kg/100 Kg
| Application | Aerospace, Automotive, Consumer Electronics, Energy, Mold |
|---|---|
| Technology | LPBF |
